Product Description
Versatile Protection

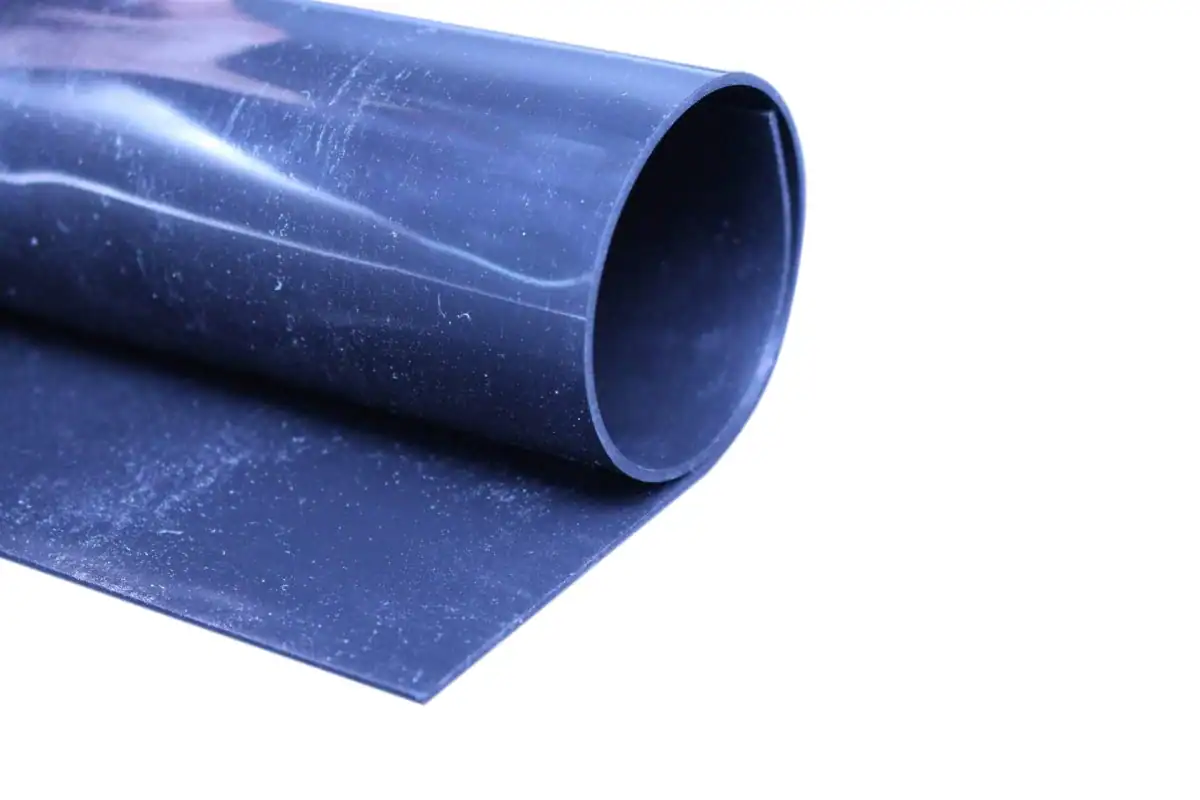

Our electrically conductive silicone sheets are designed for a wide range of applications, offering protection as low amperage conductors or against electrostatic discharge. Available in 915mm widths and thickness from 0.5mm to 3.2mm.
Enhanced Functionality
While many rubber compounds provide good electrical resistance, they often lack protection against static discharge. Our conductive sheets combine silicone with a carbon compound, offering unique features that enhance the functionality and saftey in anti-static applications.
Part of our full silicone rubber sheet range.
Facts
Main Features
Availability Format
Target Industries
Downloads
Technical Details
-
Properties Units Typical Value Test Method Specific Gravity g/cm3 1.17 ASTM D297 Durometer Shore A 65 ± 5 ASTM D2240 Tensile Strength MPa (psi) 5.2 (774) ASTM D412 Elongation % 260 ASTM D412 Compression Set (70 hrs at 150ᵒC / 25%) % 26 ASTM D395 Tear Strength KN/m (ppi) 8 (46) ASTM D624 Electrical Conductivity Ω·cm 5 ASTM D991 These figures are only intended as a guide and should not be used in preparing specifications.
