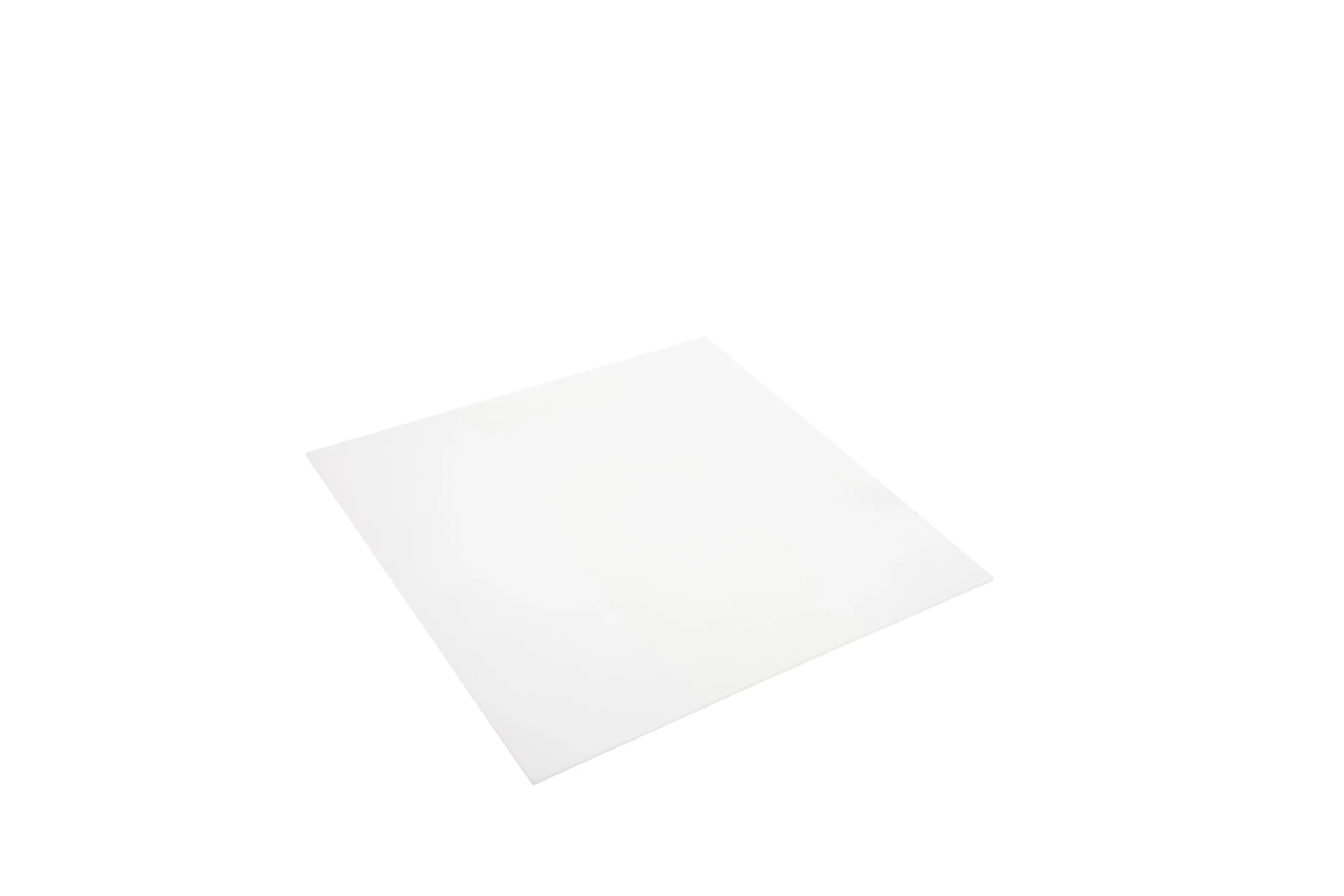

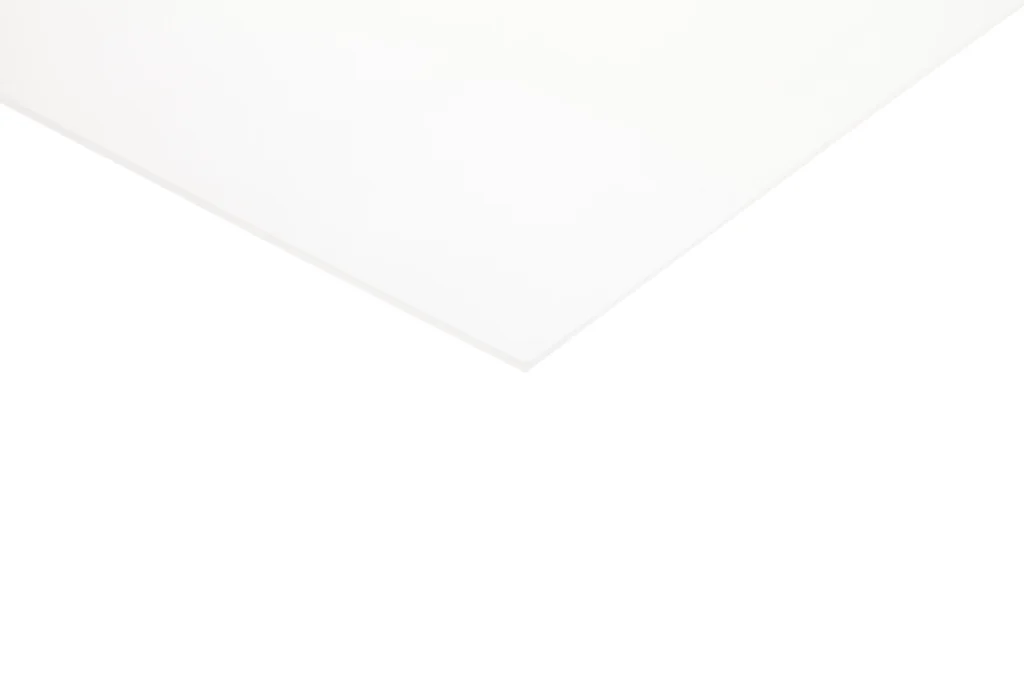

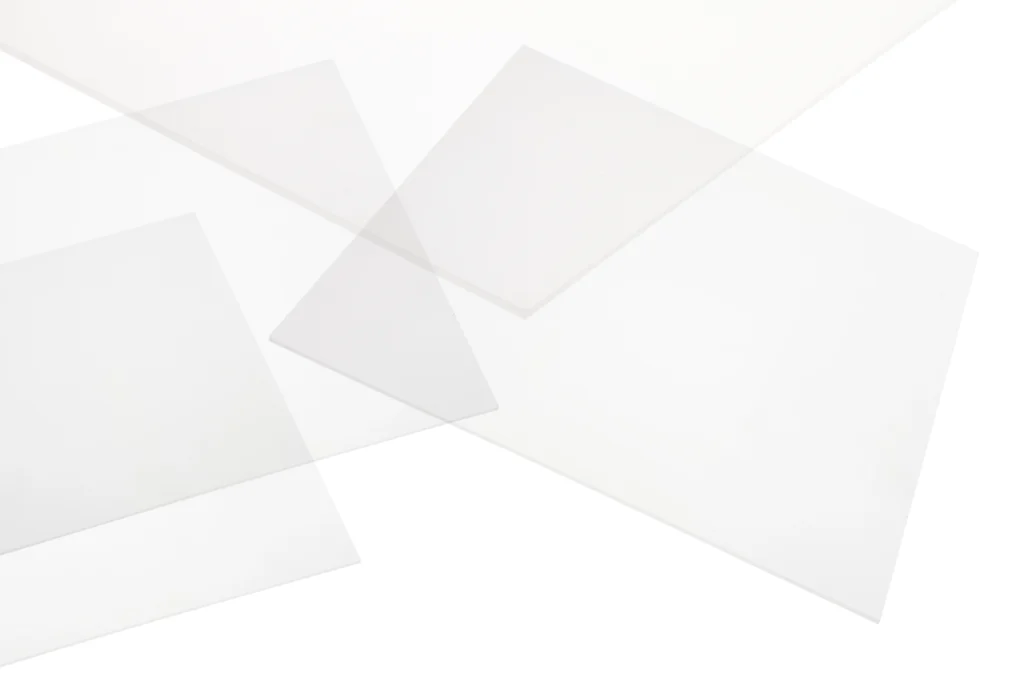

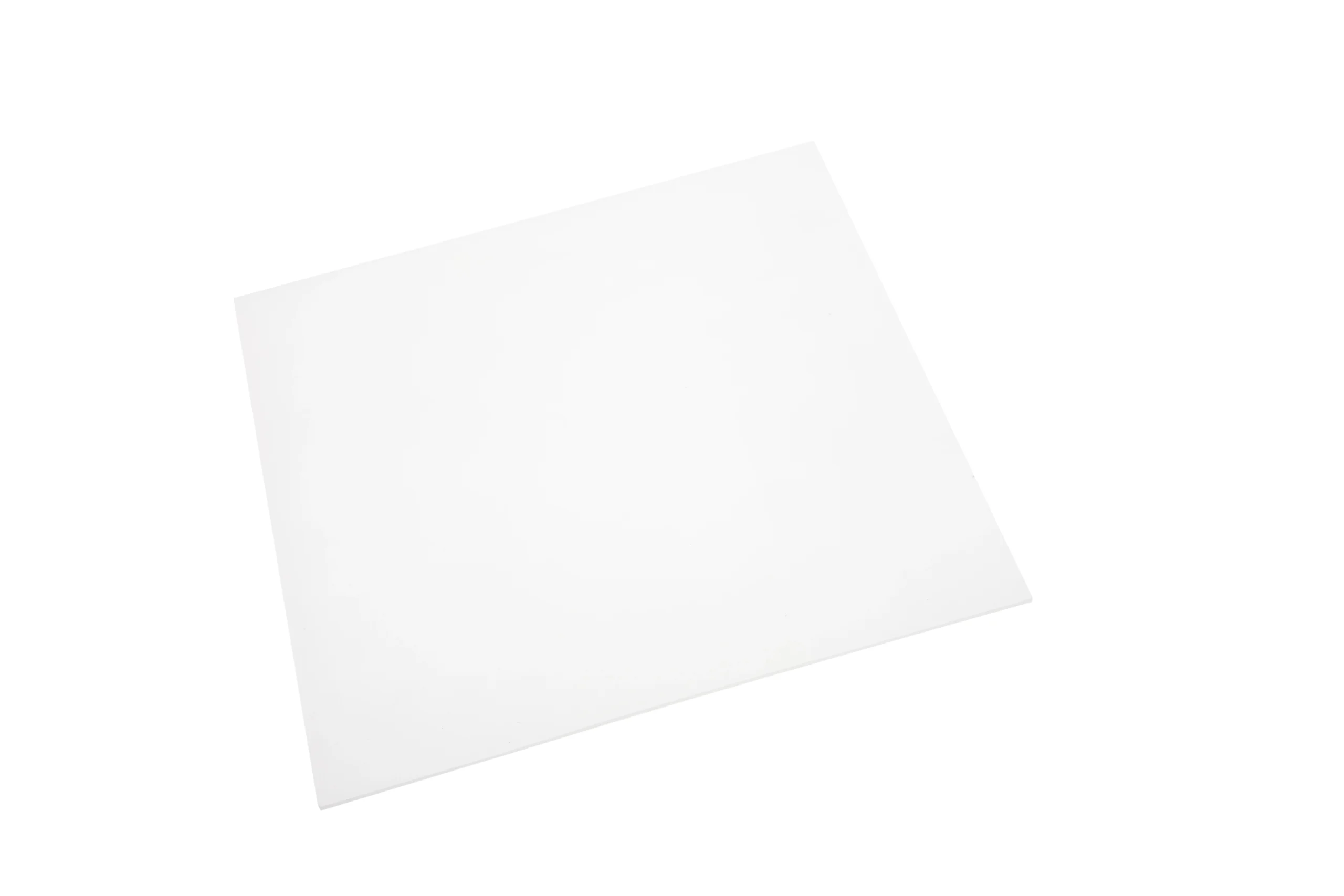

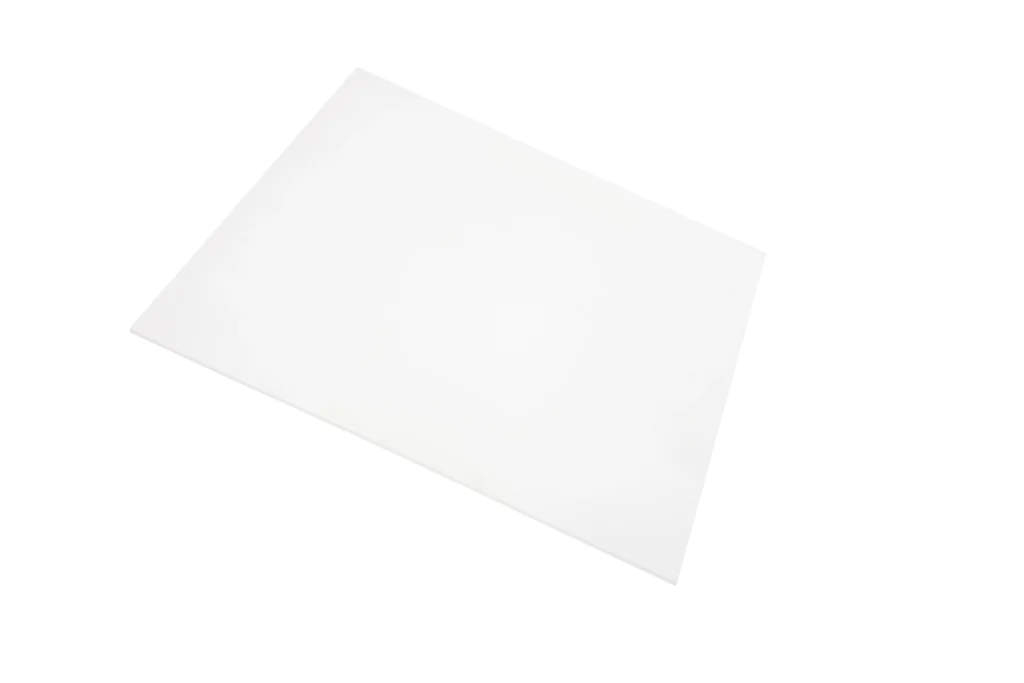

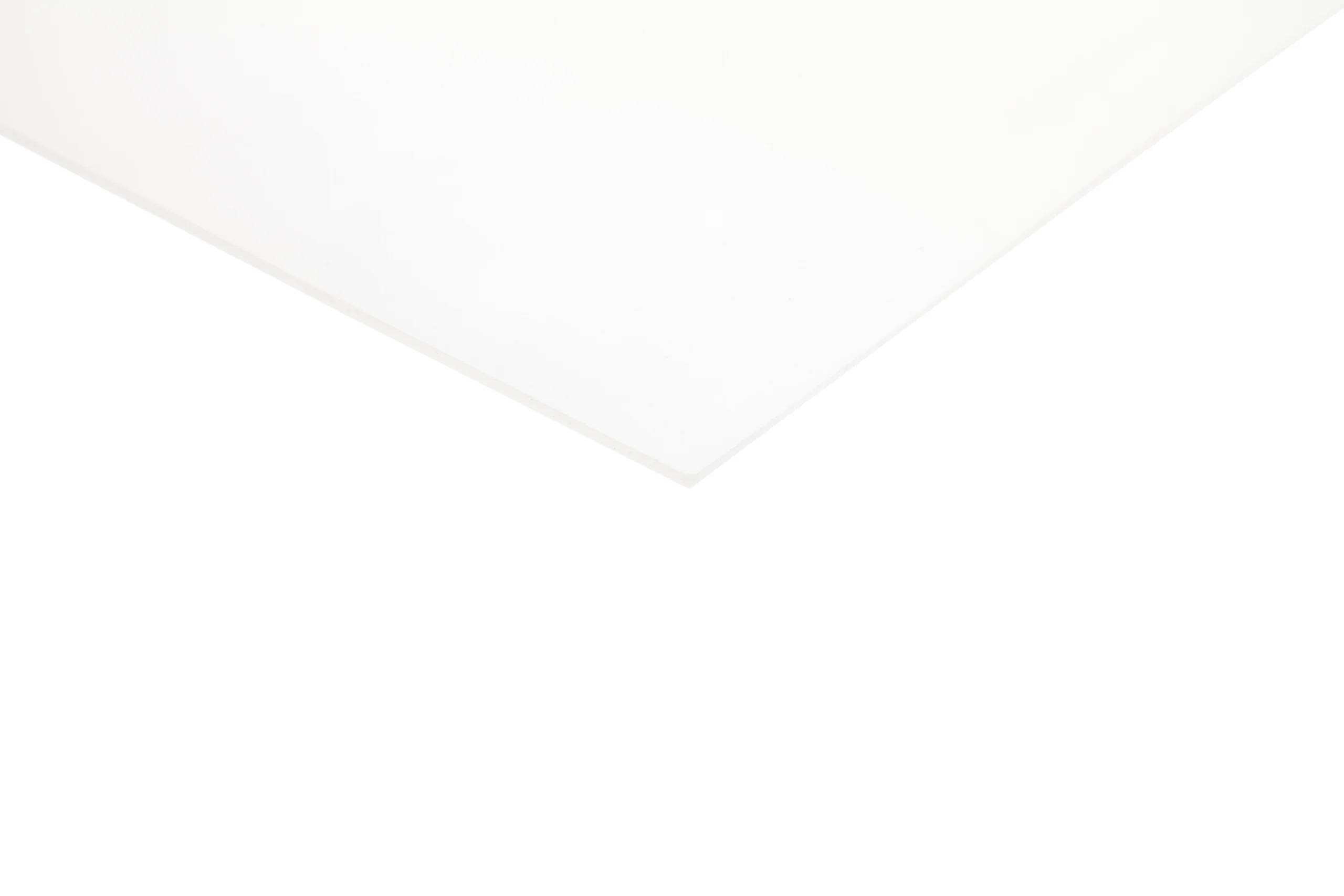

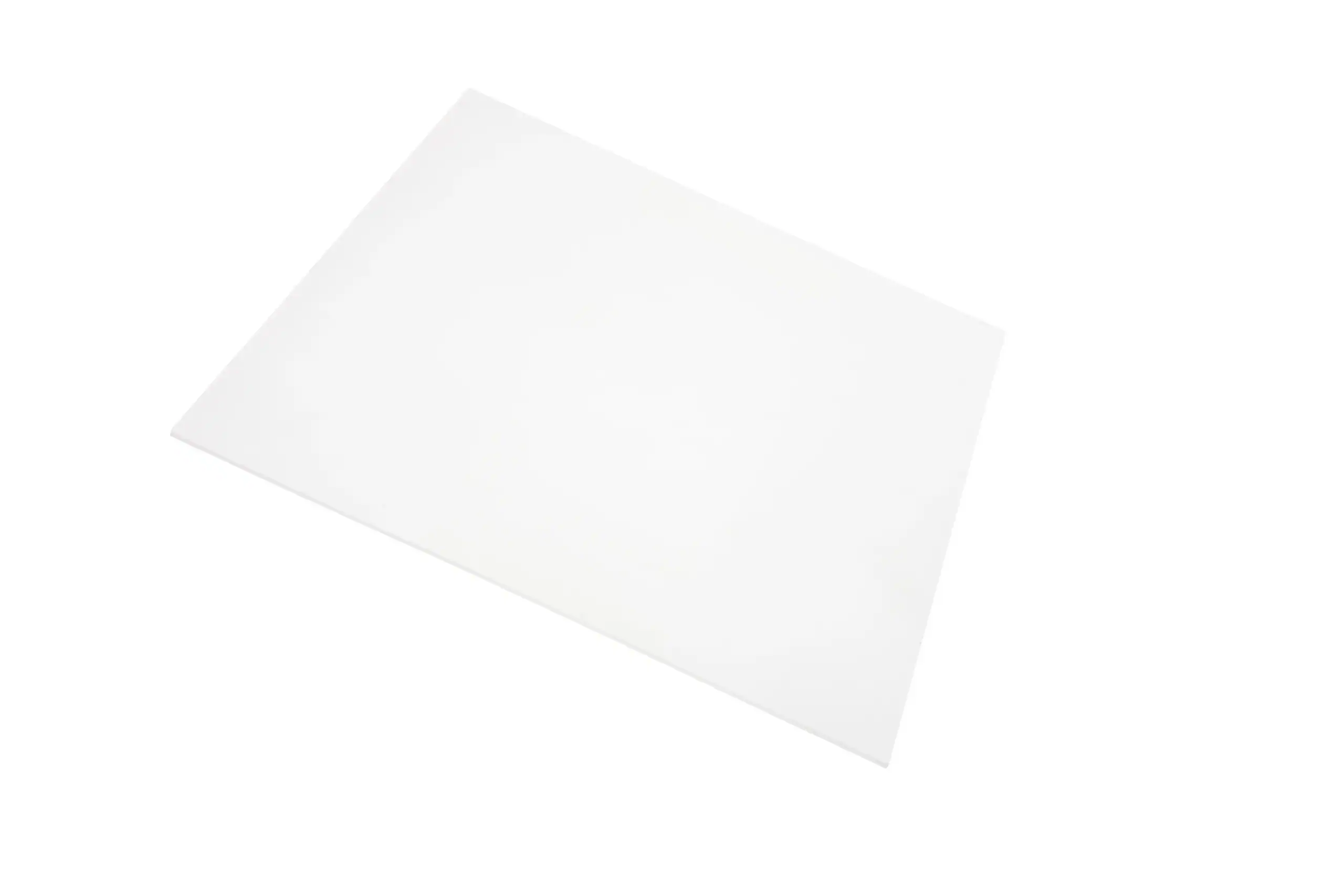

Product Description
High Purity and Safety
Our platinum cured silicone sheets are peroxide-free, non-toxic and non-yellowing, offering superior physical properties compared to stanard silicone. Available in 1m widths and various lengths, we supply thicknesses from 0.5mm to 3mm.
Preferred Material
Favoured by the food, beverage and medical industries, platinum cured silicone is known for its excellent purity. It contains no peroxide by-products, making it non-toxic and non-yellowing. This ensures it won’t contaminate and food or liquid it contacts, making it ideal for sensitive environments
Compliances
BfR Compliant
FDA 21 CFR 177-2600
REACH and RoHs Complaint
Facts
Material Type
Silicone Rubber
Temperature Range
-60ᵒC to +230ᵒC (250ᵒC Intermittent)
Hardness Range
60ᵒ Shore A
Colour Availability
Translucent
Roll Width
1000mm
Thicknesses
0.5mm, 1.0mm, 1.5mm, 2.0mm, 3.0mm
Main Features
- Platinum cured
- High purity
- Non-toxic
- High tear and tensile strength
- Diverse chemical resistance
- Clear appearance
- Ozone, UV and weathering resistant
Availability Format
Target Industries
No data was found
Downloads
Technical Details
-
Property Units Typical Value Test Method Hardness Shore A ±5 60 ASTM D2240 / DIN 53505 Tensile Strength MPa (PSI) 10.5 (1525) ISO 37 type 1 / ASTM D412 die C / DIN 53504 Type S1 Elongation to Failure % 725 ISO 37 type 1 / ASTM D412 die C / DIN 53504 Type S1 Tear Strength N/mm (lb./in.) 35 (200) ASTM D624 die B Compression Set 24 Hrs @ 150ᵒC % 23 BS 903 pt A6 type B / DIN/ISO 815 type B Compression Set 22 Hrs @ 300ᵒF % 13 ASTM D412 die B / DIN 53517 type 1 / ISO 815 type B
