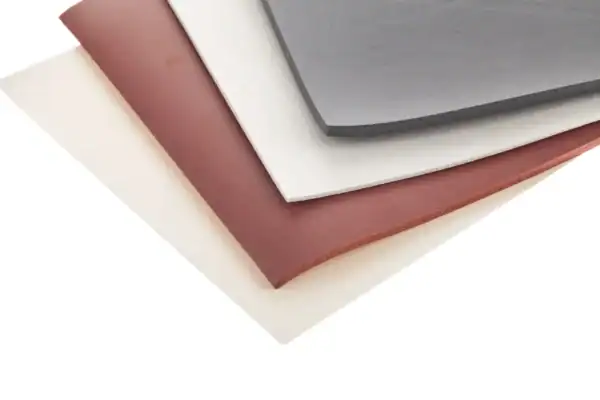

General Purpose Silicone Sponge Sheet
Product Codes: VGD10SH, VGD16SH, VGD20SH, VGD24SH, VGD33SH
Product Description
Soft and Deformable
Our silicone sponge sheets are ideal for applications requiring a soft, easily deformable material that solid rubber cannot provide.
Superior Insulation and Sealing
Featuring a closed cell struture and a smooth outer wall, these sheets prevent liquid and gas penetration, offering excellent insulation and sealing properties. They also operate within a wide temperature range from -60°C to 200°C.
Versatile Applications
These features make our sponge sheets highly versatile, suitable for replacing standard rubber in a variety of applications.
Compliances
Automotive standard PART 571MBSS302
Capable of meeting ASTM D105 2A2; ASTM 6576 Grades B&C
FAR 25 / JAR 25 / CS 25 Approved
REACH and RoHs Complaint
UL94 HB (would meet if tested)
Facts
Material Type
Silicone Sponge
Temperature Range
-55ᵒC to +230ᵒC
Density Range
200-550kg/m³
Colour Availability
Black, White, Red Oxide (Density dependent)
Roll Size
1000mm wide and up to 10m long
Main Features
- Good thermal insulation
- Exceptional sealing performance
- Wide operating temperature range
- Ozone, UV and weathering resistant
- Natural bacteria resistance
Availability Format
Target Industries
No data was found
Technical Details
-
Thickness White Black Red Oxide Roll Width Backing 1.5mm ✓ ✓ ✓ 1000mm Plain / Adhesive 2mm ✓ ✓ ✓ 1000mm Plain / Adhesive 3mm ✓ ✓ ✓ 1000mm Plain / Adhesive 4mm ✓ ✓ ✓ 1000mm Plain / Adhesive 5mm ✓ ✓ ✓ 1000mm Plain / Adhesive 6mm ✓ ✓ ✓ 1000mm Plain / Adhesive 8mm ✓ ✓ ✓ 1000mm Plain / Adhesive 10mm ✓ ✓ ✓ 1000mm Plain / Adhesive 12mm ✓ ✓ ✓ 1000mm Plain / Adhesive 15mm ✓ ✓ ✓ 1000mm Plain / Adhesive 20mm ✓ ✓ ✓ 1000mm Plain / Adhesive 25mm ✓ ✓ ✓ 1000mm Plain / Adhesive 30mm ✓ ✓ ✓ 1000mm Plain / Adhesive -
-
-
-
