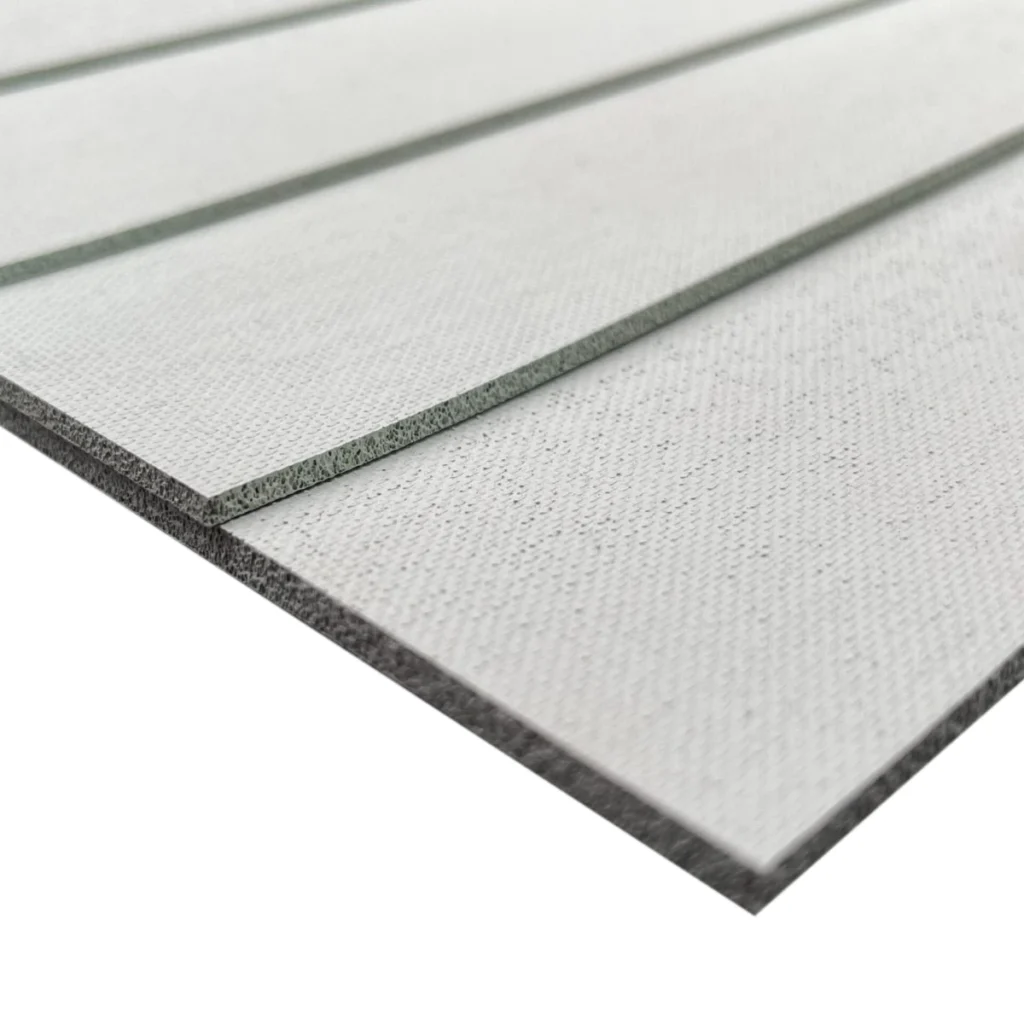

- Thermally Conductive Silicone Sponge Sheet
Product Description
Versatile and Efficient
Our thermally conductive silicone sponge offers excellent thermal conductivity and electrical isolation. Available in Thicknesses from 0.8mm to 6.35mm, we supply sheets with a width of 915mm in metre-length multiples to meet your specific needs.
Superior Sealing
Made from silicone sponge, this product conforms to uneven surfaces, providing excellent sealing properties. Its closed-cell structure prevents liquid and gas penetration, making it an effective gap filler.
Compliances
FDA 21 CFR 177-2600
REACH and RoHs Complaint
Facts
Material Type
Silicone Sponge
Temperature Range
-62ᵒC to +205ᵒC
Density Range
1105kg/m³ (60 lb/ft³)
Colour Availability
Light Green
Roll Size
914mm wide x 4.5m long (914mm x 914mm sheet only for 6.35mm thick)
Thicknesses
0.8mm, 1.6mm, 2.4mm, 3.2mm, 4.8mm, 6.35mm
Main Features
- Good thermal conductivity
- High durability
- Excellent shape memory
- Good electrical isolation
- Flexibility and conformability
- Ozone, UV and weathering resistant
Availability Format
Target Industries
No data was found
Technical Details
-
Property Units Typical Value Test Method Density Kg/m3 (lb/ft3) 1105 (69) ASTM D297 Compression Deflection 25% Compression kPa (PSI) 152 (18) ASTM D1056 Compression Set % typical 15 ASTM D1056 Tensile Strength kPa(PSI) 828 (120) ASTM D412 Dielectric Strength Volts/mil 100 ASTM D149 Elongation % 150 ASTM D412 These figures are only intended as a guide and should not be used in preparing specifications.
